1 Manual Stacker Beeco BHS 1000 160
Badawy Metal Industries - BEECO

Product Files (0)
More About Product

154912786659130.jpg 110.94 KB



BEECO Manual Stacker is designed and manufactured to facilitate the handling of palletized goods in warehouses, production facilities and/or hypermarkets as the Stacker has a compact design to facilitate maneuverability inside narrow isles.  BEECO Manual Stacker has a sturdy profile manufactured from rigid steel which enables it to lift a load of up to 1000 Kg to a height of 160 Cm.
BEECO Manual Stacker has controlled lowering speeds for safety of the load and is equipped with a control handle that has three Fingertip control positions (Raise - Neutral - Lower).
BEECO Manual Stacker wheels have nylon front and rear wheels for silent running and their steering angles can reach up to 230 degrees to ensure high maneuverability accuracy.
BEECO Manual Stacker hasa special Lowering mechanism for controlled lowering speeds to ensure load safety.
BEECO Manual Stacker maintenance and services can be done on the ground via BEECO’s mobile support units.

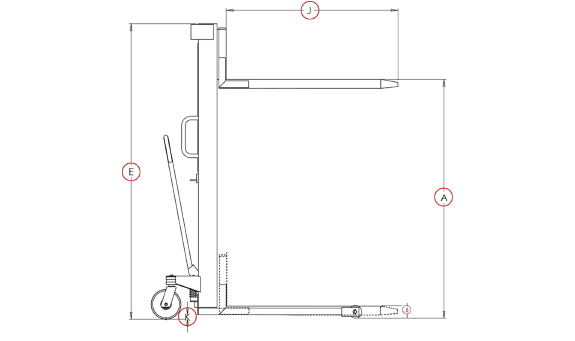

Dimensions
Max. Lifting height (mm)                       1600
Mini. Lifting height (mm)                       90
Overall Length (mm)                             1653
Overall Width (mm)                               600
Overall height (mm)                              1980



Manual Stacker BEECO BHS 1000 160-4.jpg 62.54 KB


Manual Stacker BEECO BHS 1000 160-3.jpg 58.59 KB

Safety
BEECO Manual Stacker is equipped with a steel grid to protect the operator from the chains that operate the stacker..


Features
BEECO Manual Stacker is equipped with a steel grid to protect the operator from the chains that operate the stacker..



Manual Stacker BEECO BHS 1000 160-5.jpg 159.61 KB
